Right-Angle Waveguide-to-Coaxial Adapter
Model: BTV-SERIES
The BTV series is a family of right-angle waveguide-to-coaxial adapters with the waveguide port and coaxial port arranged at 90°. The series covers 17.6–67 GHz in 6 models, spanning K, Ka, Q, V and E bands. Ideal for space-constrained millimeter-wave RF systems, antenna feeds and test & measurement applications.
Product Features
|Wide Frequency Coverage: 17.6–67 GHz, K / Ka / Q / V / E bands
Low VSWR: ≤1.35
Low Insertion Loss: ≤0.45 dB
Right-Angle Structure: 90° port arrangement saves layout space
6 Models Available: different frequency bands and connector options
Technical Specifications
| Model | Frequency | VSWR | IL | Waveguide | Coax | Dimensions (mm) |

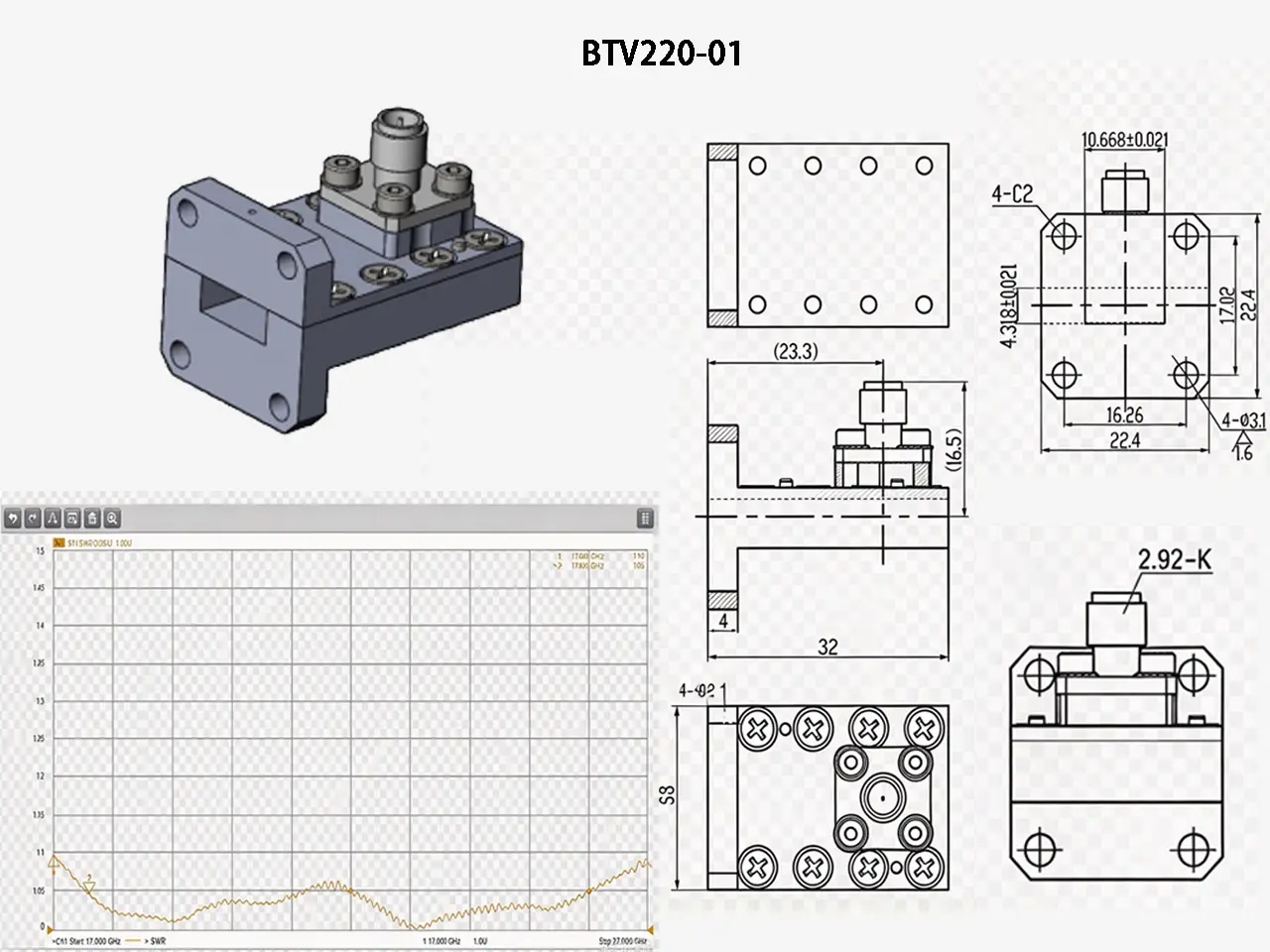

| BTV220-1 | 17.6–26.5 GHz | ≤1.1 | ≤0.3 dB | WR-42 | 2.92mm | 32×23×28 |

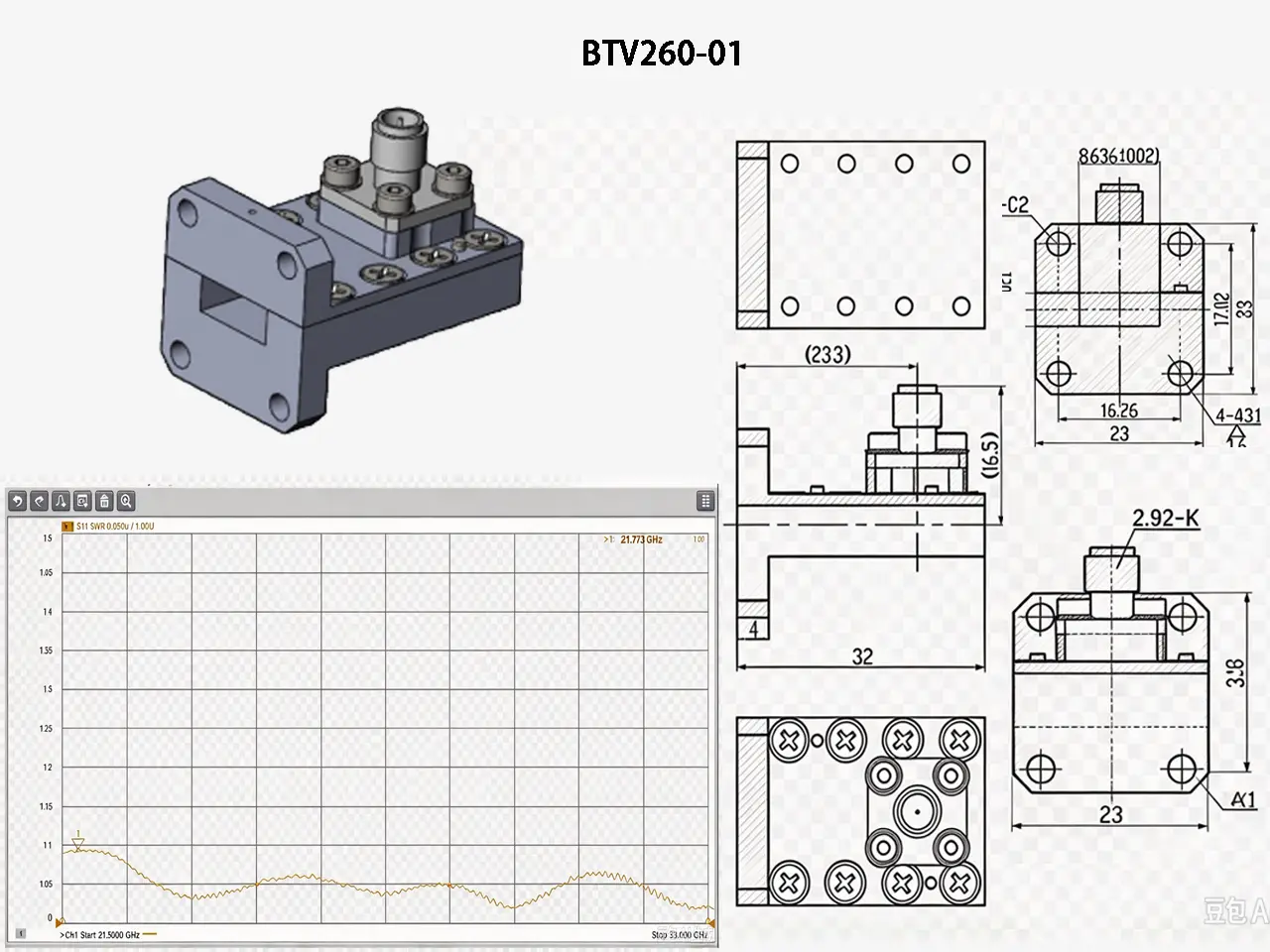

| BTV260-1 | 22–33 GHz | ≤1.1 | ≤0.3 dB | WR-34 | 2.92mm | 32×23×28 |

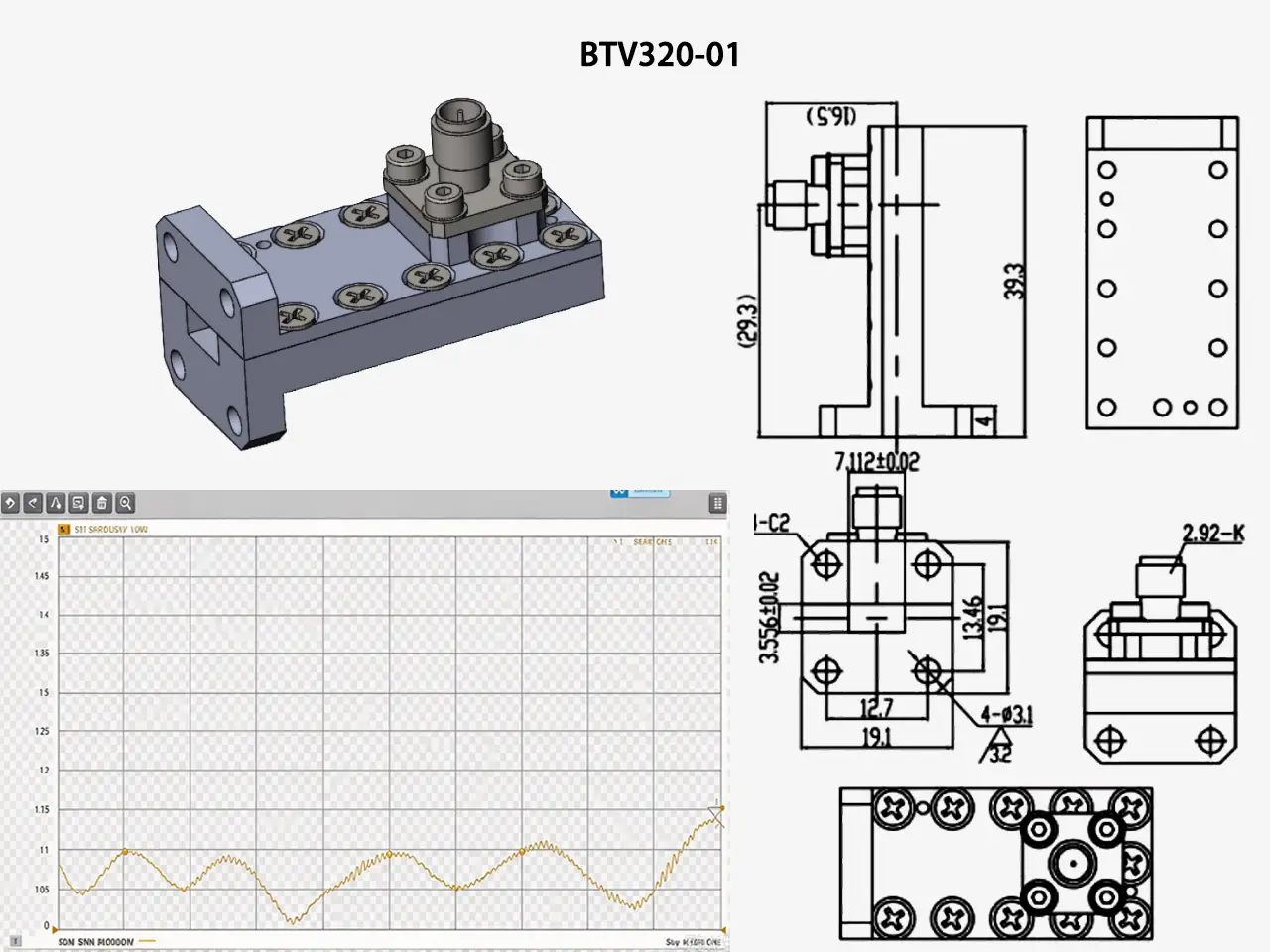

| BTV320-01 | 26.5–40 GHz | ≤1.15 | ≤0.4 dB | WR-28 | 2.92mm | 39.3×19.1×19.1 |

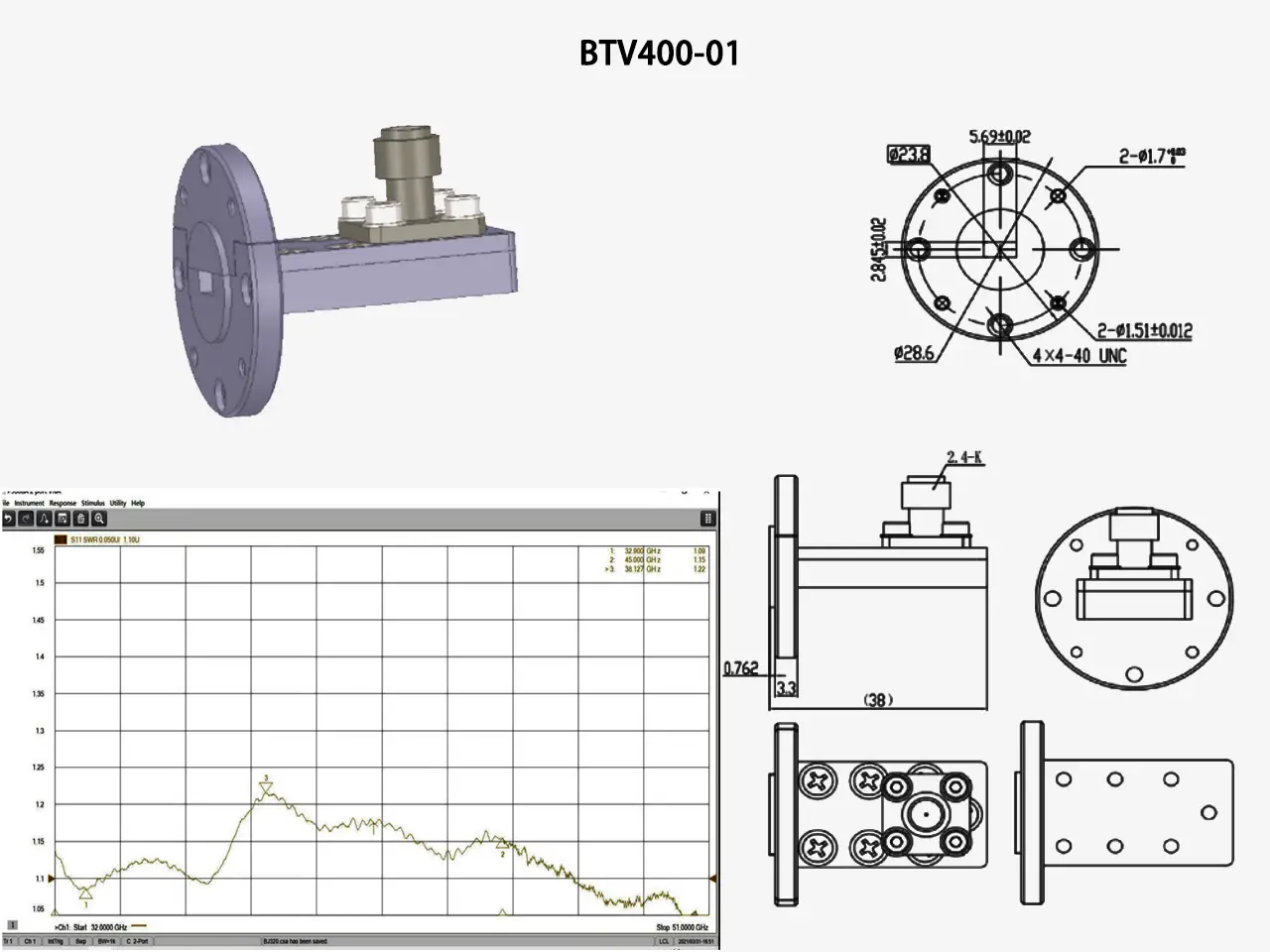

| BTV400-01 | 33–50 GHz | ≤1.25 | ≤0.4 dB | WR-22 | 2.4mm | 38×19.1×24.2 |

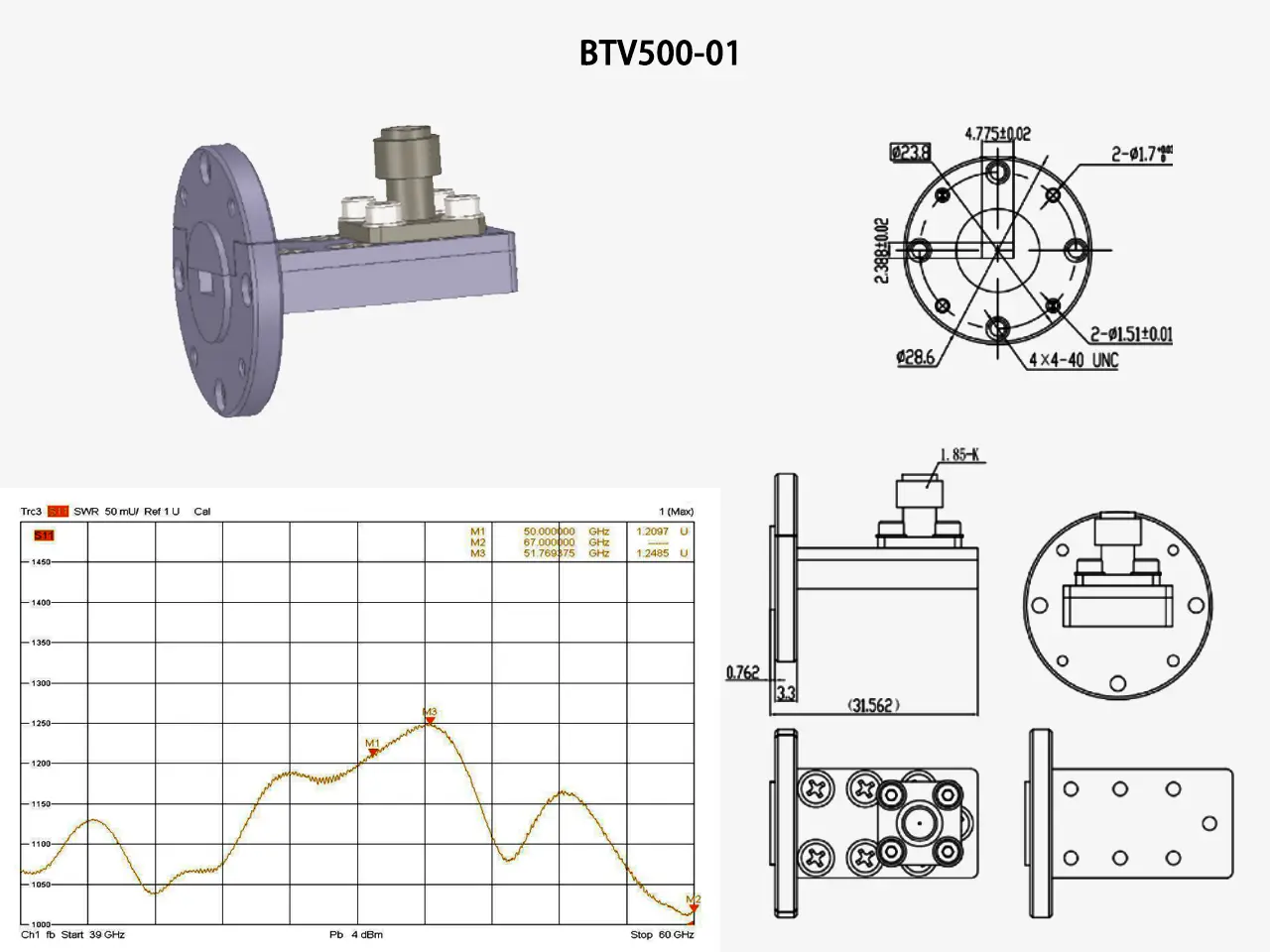

| BTV500-01 | 40–60 GHz | ≤1.3 | ≤0.4 dB | WR-19 | 1.85mm | 31.6×19.1×19.1 |

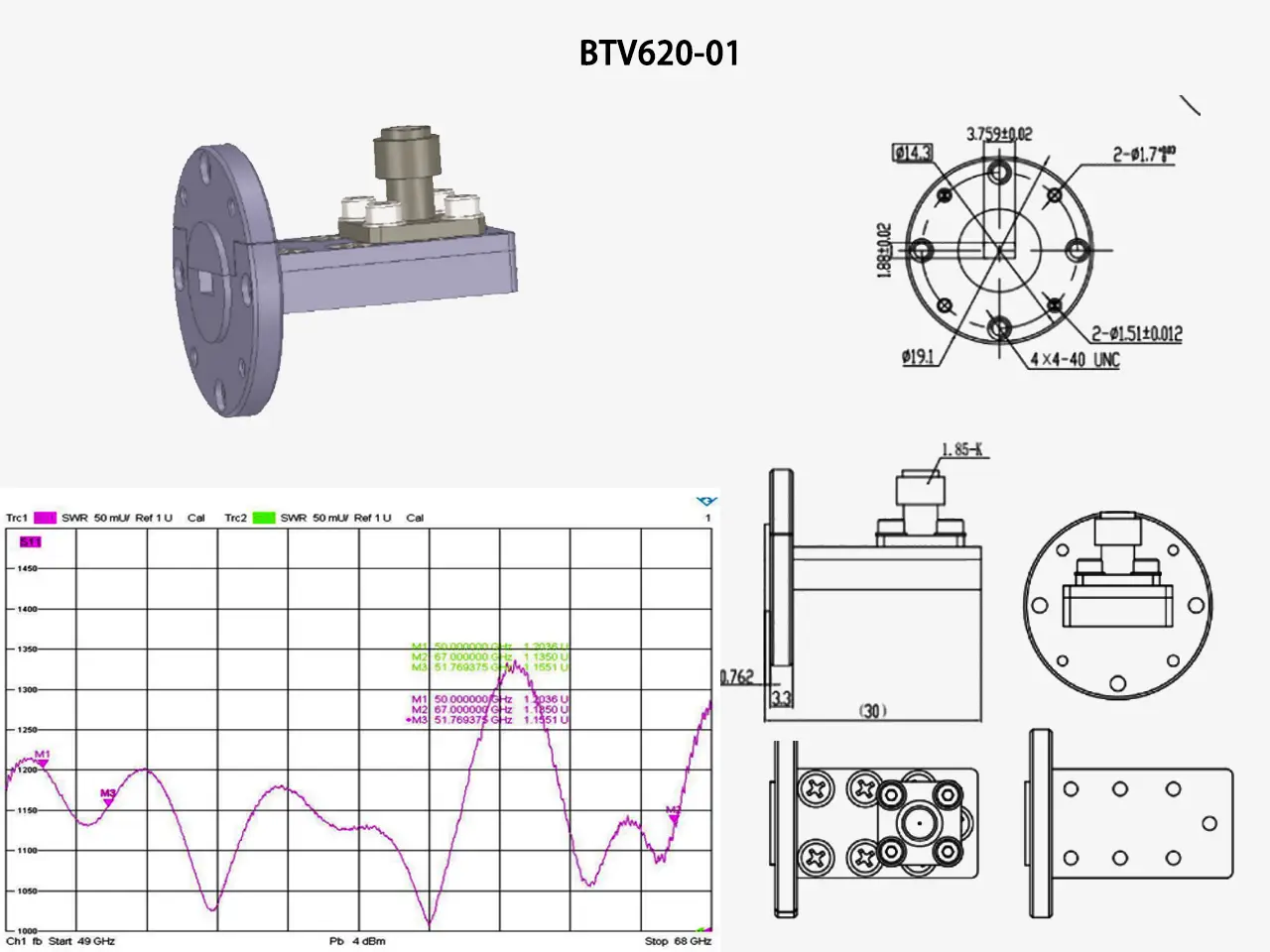

| BTV620-01 | 50–67 GHz | ≤1.35 | ≤0.45 dB | WR-15 | 1.85mm | 30×19.1×22.3 |
