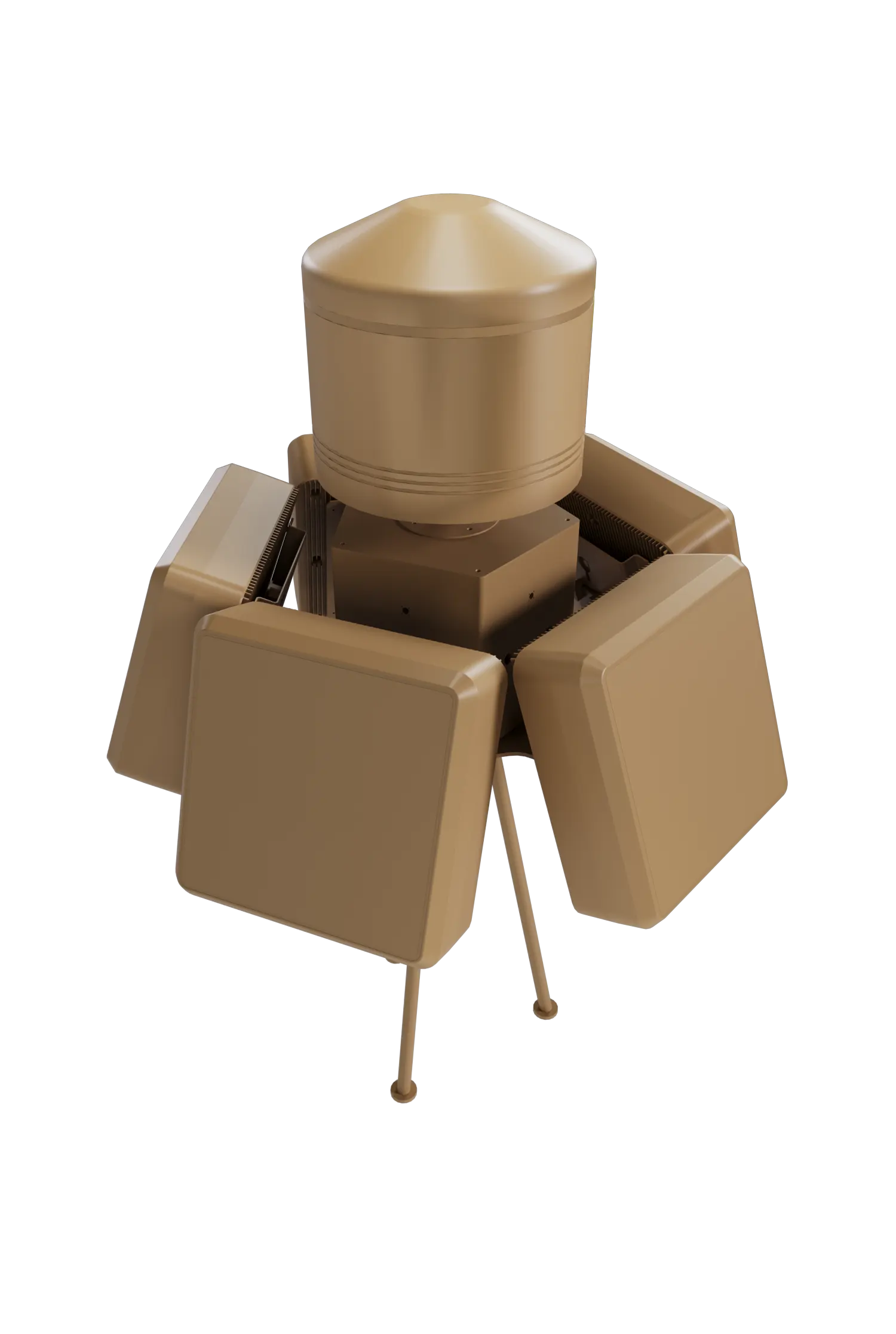

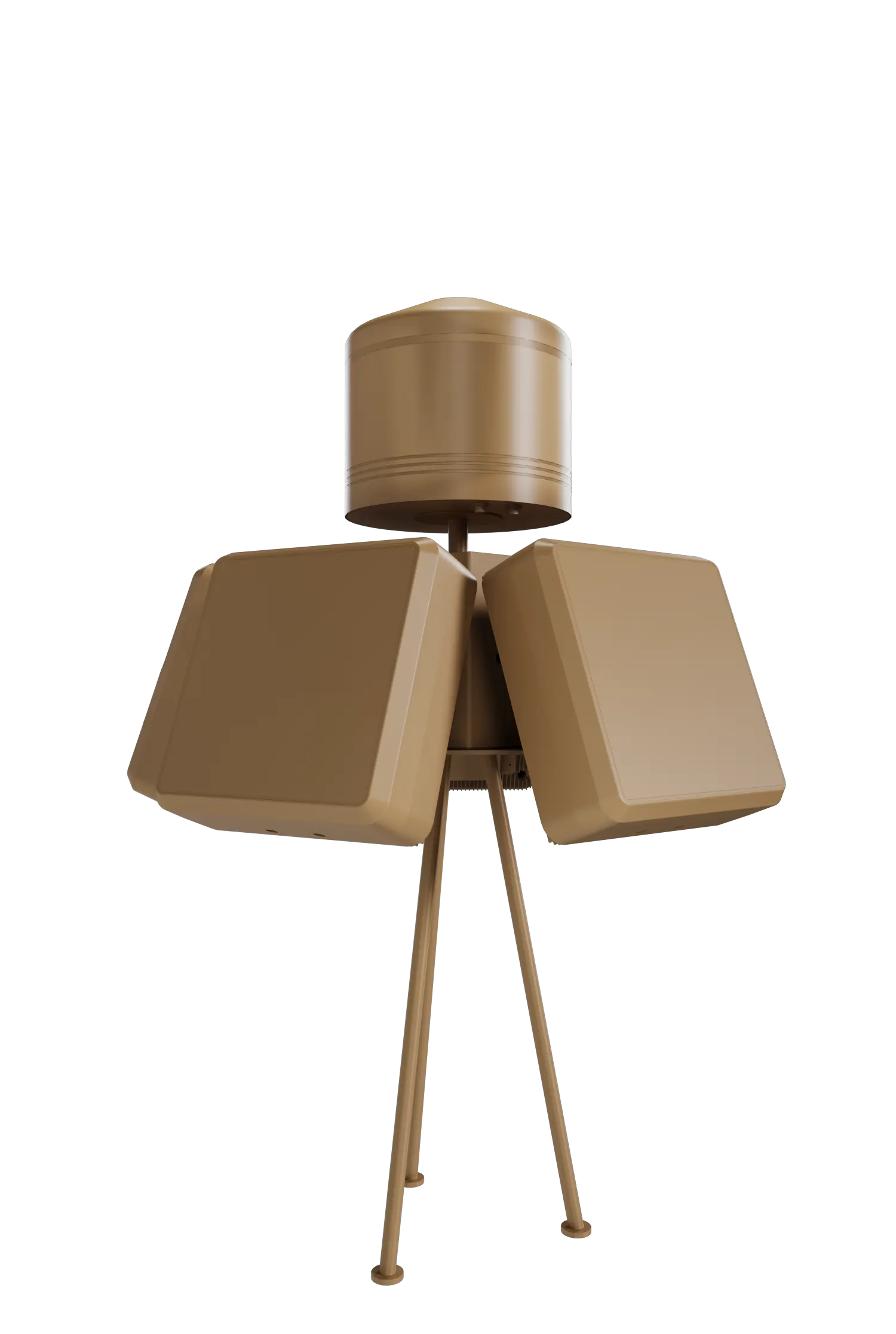

Multi-Faceted Detection, Countermeasure & Spoofing System
Model: CD-Y10
Acting as an intelligent sentinel for low-altitude security, this system supports both fixed-site and vehicle-mounted deployment. It employs passive spectrum detection and radio protocol analysis to identify drone brand, model, and position at long range. The system provides multi-faceted, multi-band directional jamming against drone navigation, remote control, and video transmission signals, with FPV analog video detection and jamming capability. Additionally, it integrates a spoofing subsystem that generates simulated GNSS signals to enable directional expulsion and no-fly zone enforcement. It is designed for large-scale scenarios with stringent airspace security requirements.
Product Features
- Multiple Jamming Modes with Full-Band Omnidirectional Coverage
- GNSS Spoofing for Effective Counter-UAS
- FPV Detection & Real-Time Video Feed Analysis
- Expandable Integration with Radar / EO Sensors; Supports Standalone and Networked Deployment
- Whitelist / Blacklist for Cooperative vs. Non-Cooperative Targets
- Extracts Drone Serial Number (SN), Distance, Altitude, and Pilot Location
Technical Specifications
| Detection Frequency Band: | 70MHz–6GHz full-band scanning (with spectrum analysis) |
| Detection Radius: | 5–10km |
| Countermeasure Frequency Bands: | 400MHz, 900MHz, 1.2GHz, 1.4GHz, 1.5GHz, 2.4GHz, 5.2GHz, 5.8GHz (5-facet coverage) |
| Countermeasure Radius: | 1–3km |
| Spoofing Frequency Bands: | G1 / B1 / L1 / E1 |
| Spoofing Range: | 1km |
| FPV Analog Video Detection Frequency Band: | 500MHz–6.2GHz full-band scanning |
| Video Transmission Detection Range: | 1–2km |
